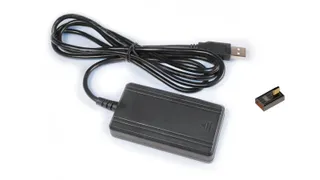

ESPNetLink module with its USB cable and OTG connector
Pre-order Open source firmware

ESPNetLink

An ESP32 LTE and GPS module for IoT connectivity and vehicle tracking.

$89 USD. Shipping $8 US, $18 worldwide at Crowd Supply. OBD flat cable sold separately.
Pre-order on Crowd Supply
  • LTE connectivity with a WireGuard VPN tunnel into Home Assistant
  • Dedicated GNSS receiver (GPS, GLONASS, BeiDou, Galileo, QZSS) and an onboard IMU for motion sensing
  • Powered from the WiCAN PRO USB host port or the vehicle's USB port, with your own SIM card
  • IoT gateway for low-data-rate sensors and devices
  • Sleep mode with wake on USB or on motion
  • Configured from a lightweight web interface or the command line, firmware on GitHub

Works with

WiCAN PROHome AssistantWireGuard

ESPNetLink gives a WiCAN PRO its own mobile data link and position fix. It plugs into the USB host port, connects over LTE Cat-M1 or NB-IoT, and opens a WireGuard tunnel so Home Assistant can reach the car wherever it is parked. The GNSS receiver and the onboard IMU add live tracking and wake-on-motion.

It also works on its own as a small LTE gateway for low-data-rate sensors. Configuration happens in a lightweight web interface or over the command line, and the firmware is developed in the open on GitHub.

Specifications

What is inside

Radio

Modem

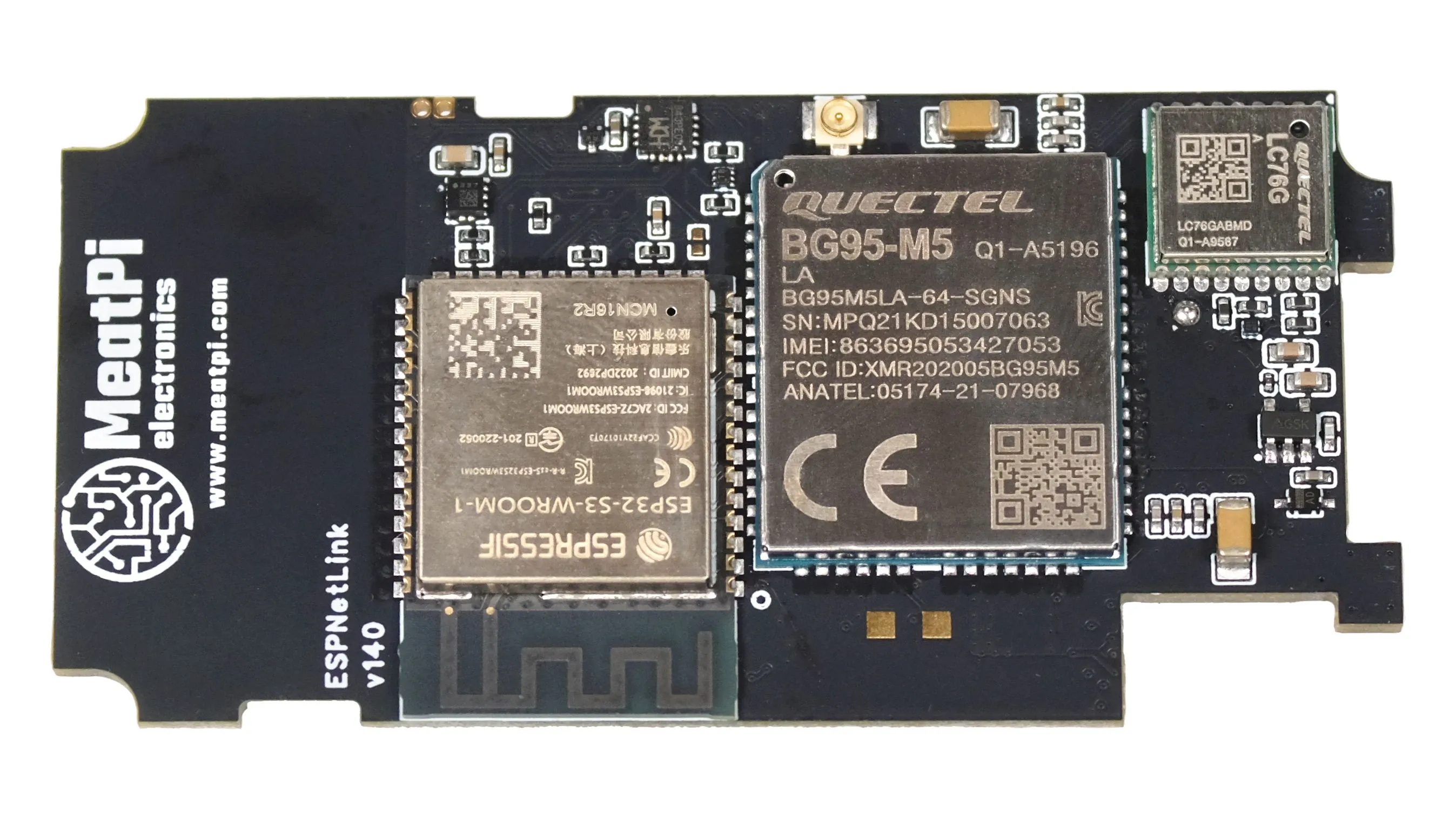

Quectel BG95-M5, LTE Cat-M1 and NB-IoT
Data rate
Up to 588 kbps down, 1119 kbps up
Cat-M1 bands
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85
NB-IoT bands
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85
GNSS
LC76G (GPS, GLONASS, BDS, Galileo, QZSS)

Compute and interfaces

MCU
ESP32-S3 dual-core, 16 MB flash, 8 MB PSRAM
Wireless
Wi-Fi, BLE
Interfaces
USB-to-serial, USB-C OTG connector
Power
From the WiCAN PRO USB host port or a vehicle USB port

Physical

Size
80 x 44 x 15.5 mm
In the box
2 m USB cable, USB-C OTG connector, enclosure

Documentation

Set it up, keep it updated

ESPNetLink firmware Source, releases and setup notes on GitHub. WiCAN documentation Pairing ESPNetLink with WiCAN PRO and Home Assistant.
